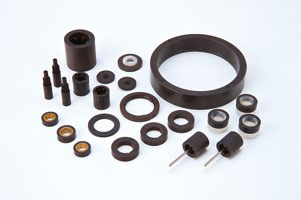

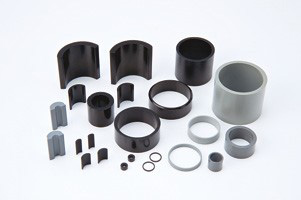

Bonded NdFeB magnets is made from NdFeB powder and plastic , can make into complicated shape that sintered NdFeB can not make.
Detailed size and tolerance can be decided according to your specification. Because it is made into finished shape by mould once time , it necessary to pay tool charge for most of cases.
The bonded Neodymium Iron Boron materials are typically anisotropic. They can be made isotropic, and are manufactured using "binders," such as epoxy resins or nylon to hold the powder in place, rather than "sintering" the alloy. Energy products of the bonded magnet range from 5 MGOe to 10 MGOe. Two basic processes are used:
1.Compression Molding Binders are epoxy resins, and energy products of 10 MGOe are achievable. Moderately complex shapes can be achieved.
2.Injection Molding Binders are generally nylon, but epoxy resins may also be used. Energy products are lower than compression molding; however, more complex shapes can be achieved without final processing, which makes it cost effective for low to medium performance applications which are cost sensitive.
The bonded Neodymium Iron Boron magnet may be used without surface treatment; however, coating is recommended. Generally, spray coatings are used, such has phenolic or epoxy coating.
If you have any request or inquiry for us, please do not hesitate to contact. Click the inquiry button to send us your email.
