Cup magnets offer substantially more holding power than their ceramic cousins. cup magnets are wide and shallow, with the north and south poles on the same plane, offering the ultimate in gripping power. Supplied with a center hole to increase their flexibility in use.
If you have any request or inquiry for us, please do not hesitate to contact. Click the inquiry button to send us your email.

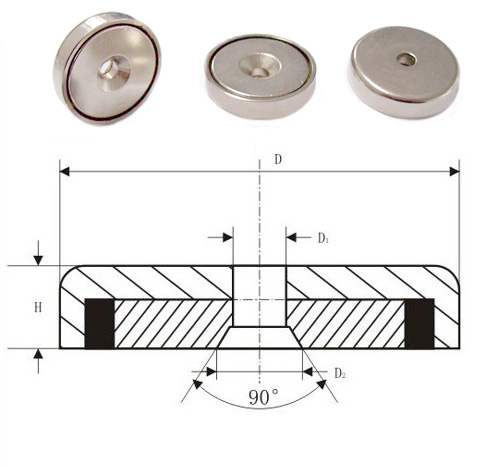

| Model | D(mm) | D1(mm) | D2(mm) | H(mm) | Weight(g) |
|---|---|---|---|---|---|
| GF-A16 | 16 | 3.5 | 6.5 | 5.3 | 5.5 |
| GF-A20 | 20 | 4.5 | 8.6 | 7.2 | 12 |
| GF-A25 | 25 | 5.5 | 10.5 | 8 | 21 |
| GF-A32 | 32 | 5.5 | 10.5 | 8 | 37 |
| GF-A36 | 36 | 5.5 | 10.5 | 8 | 45 |
| GF-A42 | 42 | 6.5 | 12.5 | 9 | 72 |
| GF-A48 | 48 | 8.5 | 18 | 11.5 | 125 |
| GF-A60 | 60 | 8.5 | 18 | 15 | 250 |
| GF-A75 | 75 | 10.5 | 19 | 18 | 465 |
| Model | OD×ID×H(mm) | Attractive Power(kgf) |
|---|---|---|
| GF-B10 | 10×13.5×5(M3) | 2.64 |
| GF-B20 | 20×13.5×5(M3) | 4.835 |
| GF-B30 | 30×13.5×5(M3) | 7.452 |
| GF-B40 | 40×13.5×5(M3) | 10.476 |
| GF-B50 | 50×13.5×5(M3) | 13.834 |
| GF-B60 | 60×13.5×5(M3) | 17.462 |
| GF-B80 | 80×13.5×5(M3) | 25.364 |
| GF-B100 | 100×13.5×5(M3) | 33.948 |
| GF-B120 | 120×13.5×5(M3) | 43.078 |
