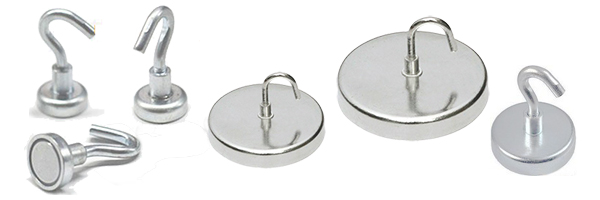

Magnet hooks are made of magnets (NdFeB, SmCO, AlNiCo or hard Ferrite) and other spare parts, such as metal, plastic, rubber and other components.
Sometimes magnetic hooks can meet some special requirements while a single magnet can not do. In the meantime, using magnetic hook can save more cost than just using magnet and gain the same purpose.
The basic principle of the magnetic hook is to direct and concentrate the flux from both magnetic poles to one active face. This is usually achieved with steel pole pieces or a steel-backing cup.

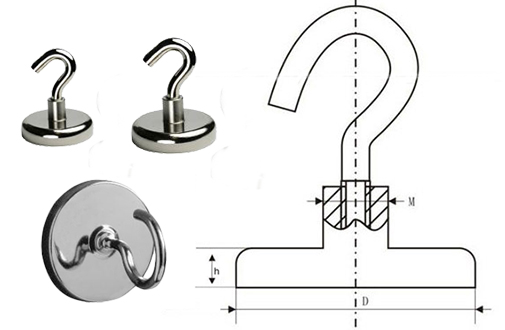

| Model |
D | h | M | Attractive Power | Weight |
|---|---|---|---|---|---|
| GF-H16 | 16mm | 5mm | 4mm | 5.5kg | 11g |
| GF-H20 | 20mm | 7mm | 4mm | 9kg | 21g |
| GF-H25 | 25mm | 8mm | 5mm | 22kg | 37g |
| GF-H32 | 32mm | 8mm | 6mm | 34kg | 56g |
| GF-H36 | 36mm | 8mm | 6mm | 41kg | 68g |
| GF-H42 | 42mm | 9mm | 6mm | 68kg | 97g |
| GF-H48 | 48mm | 11.5mm | 8mm | 81kg | 154g |
| GF-H60 | 60mm | 15mm | 8mm | 113kg | 282g |
| GF-H75 | 75mm | 18mm | 10mm | 164kg | 560g |
If you have any request or inquiry for us, please do not hesitate to contact. Click the inquiry button to send us your email.
